Equipment that assures condensate discharge
from the mufti-cylinder

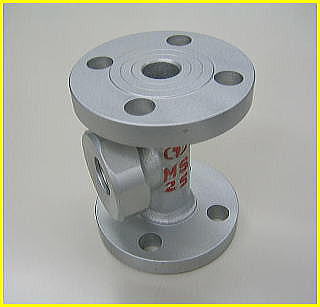

| What is MS DRAIN TESTER ? It monitors the status of condensate discharge when the steam source pressure is low with a high speed machine. Pressure loss of the blow-through steam in this cases lower than MS DRAIN SHAPER. |
| What is MS DRAIN SHAPER ? It is an equipment to monitor and judge the status of condensate discharge from each dryer cylinder. Even in the same group, the amount of generated condensate differs cylinder depending on its location, the closer it is to the press section, the more condensate. Behavior of the condensate at the shoe tip of the rotary syphons is as shown in the separate illustration of HIGH LOW SCOOP SYPHON, and in a cylinder where much condensate is generated, the amount of the blow-through steam at the syphon tip is naturally less. |
| Application of the MS DRAIN SHAPER as a replacement of the drain trap
with low deferential pressure. It can be placed between the steam and condensate headers for prevention of condensate deposit in the steam header, without losing flow and heat as done by the ordinary traps. There are such other energy saving applications as condensate discharge of air heaters with low steam pressure where the ordinary traps do not work under low deferential pressure. |
